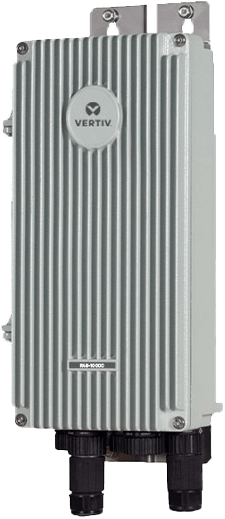

NetSure IPE Series
Brand: VertivThe NetSure IPE Series is ideal for use in network edge applications including 5G, DAS, and multi-dwelling units (MDUs).
Rapid deployment outdoors is easy since the unit is hardened and does not require a separate housing for protection against the elements.
Features- Convection cooling for silent operation
- IP65 high level protection
- High efficiency, above 95%
- Wide temperature operating range from -40°C to +75°C /-40°F to 167°F
- Compliant with global standards
- Flexible installation options include wall and pole mounting
- Rapidly deploy your 5G network with outdoor rectifiers that easily mount directly to a pole or wall
- Power your critical infrastructure in harsh environments with durable IP65-rated modules that operate up to +75 °C
- Keep network operating costs to a minimum by using highly available DC power that operates at 95% efficiency
- Eliminate voltage drops and running massive cables to remote radio heads (RRHs) by placing these compact rectifiers directly on top of the tower
- Avoid disrupting the neighborhood by running your network on silent, convection-cooled DC power
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 3
R48-1000C, -48 VDC, 1000 W, IP65, 6 GMT fuse holder
100+ In Stock
$2,132.00 CAD
Does not ship to OH, United States
R48-1000C, -48 VDC, 1000 W, IP65, bulk distribution
50+ In Stock
$1,135.00 CAD
Does not ship to OH, United States
R48-1000C, -48 VDC, 1000 W, IP65, 30A CB
25+ In Stock
$1,859.00 CAD
Does not ship to OH, United States
Specifications
Brand
Voltage
- 85 Vac to 300 Vac, 200 Vdc to 400 Vdc
Voltage, Nominal
- 100 Vac to 250 Vac, 200 Vdc to 400 Vdc
Frequency
- 45 to 65 Hz
Maximum Current
- 7.5A (AC), 5.6A (DC)
Power Factor
- > 0.90 for 25 % to 50 % load, > 0.98 for 50 % to 100 %
Total Harmonic Distortion
- ≤ 5 % for 50 % to 100 % load
Maximum Power
- 1000 W
Peak Efficiency
- 95%
Operating Temperature
- -40° to 75° C / -40° to +167° F
Storage Temperature
- -40° to +70° C / -40° to +158° F
Relative Humidity
- 5 to 100 %
Altitude
- -61 to 3048 (m): up to 2000 m at full power
- -200 to 10000 (feet): up to 6560 feet at full power
Safety
- 60950-1, 60950-22 (EN, IEC, UL)
Environmental Protection
- IP55
Certifications & Approvals
- REACH
- RoHS
- WEEE
Dimensions (H x W x D)
- 360 x 180 x 90 mm / 14.2 x 7.1 x 3.5 inches
Weight
- 5 kg / 11.0 lbs
- The NetSure IPE Series is ideal for use in network edge applications including 5G, DAS and multi-dwelling units (MDUs).
- Rapid deployment outdoors is easy since the unit is hardened and does not require a separate housing for protection against the elements.
