Images are representations only.

561665

Series: NetSure IPE Series Brand: Vertiv

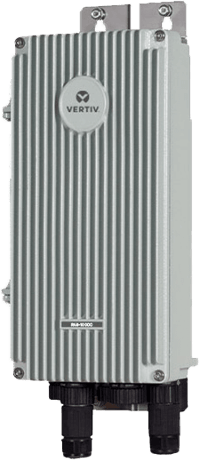

R48-1000C, -48 VDC, 1000 W, IP65, 30A CB

Price
$1,859.00 CAD
Stock
25+ In Stock
Request Information

Specifications

Brand

Voltage

  • 85 Vac to 300 Vac, 200 Vdc to 400 Vdc

Voltage, Nominal

  • 100 Vac to 250 Vac, 200 Vdc to 400 Vdc

Frequency

  • 45 to 65 Hz

Maximum Current

  • 7.5A (AC), 5.6A (DC)

Power Factor

  • > 0.90 for 25 % to 50 % load, > 0.98 for 50 % to 100 %

Total Harmonic Distortion

  • ≤ 5 % for 50 % to 100 % load

Maximum Power

  • 1000 W

Peak Efficiency

  • 95%

Operating Temperature

  • -40° to 75° C / -40° to +167° F

Storage Temperature

  • -40° to +70° C / -40° to +158° F

Relative Humidity

  • 5 to 100 %

Altitude

  • -61 to 3048 (m): up to 2000 m at full power
  • -200 to 10000 (feet): up to 6560 feet at full power

Safety

  • 60950-1, 60950-22 (EN, IEC, UL)

Environmental Protection

  • IP55

Certifications & Approvals

  • REACH
  • RoHS
  • WEEE

Dimensions (H x W x D)

  • 360 x 180 x 90 mm / 14.2 x 7.1 x 3.5 inches

Weight

  • 5 kg / 11.0 lbs

Documentation

Data Sheet
