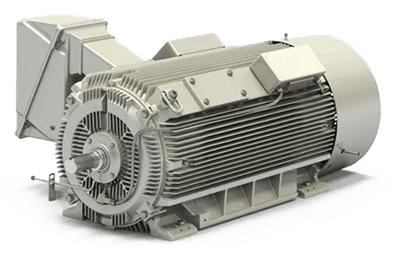

Advantage Series Motors
Brand: Siemens AGNew innovative products in this general-purpose series include an extensive list of standard options to meet your applications with power offerings up to 1,100 HP.
With assembly and stock in Ohio, this new line is available with short lead times!
Specifications
Brand
Enclosure
- TEFC (IC411)
Degree of Protection
- IP55
HP Range
- 400 - 1100 HP (2, 4 pole)
- 300 - 900 HP (6 pole)
Frame Size / Shaft Height
- 5011, 5810, SH400
Voltage
- 2300 V / 4000 V
Service Factor
- 1.15 @ 40° C
Warranty
- 36 months from date of manufacture
Construction Materials
- Frame: Cast Iron
- Bearing Housings: Cast Iron
- Main Terminal Box: Cast Iron
- Auxiliary Boxes: Cast Iron - NEMA 4X
- Shaft: 1045 equivalent (2-pole), 4140 equivalent (4,6-pole)
- Rotor: Aluminum Die Cast
- Lamination Material: C5 Core Plate
- External Cooling Fan: Anti-Static Reinforced Polyamide
- Fan Cover: Cast Iron
- Top Cover / Heat Exchanger / Tube Material: N/A
- Insulation: MICLASTIC™ VPI
- Hardware: Zinc-Plated Carbon Steel
Noise Level
- 85 dB(A)
Vertical Mounting
- N/A
Inverter Operation
- Meets NEMA MG1-31 rated at 6 kV
- Variable Torque: 10:1, Constant Torque: 2:1
Paint
- Two-part Epoxy
Paint Color
- RAL 7030 Gray
Bearing Type
- Anti-friction ball
Vibration
- 0.12 IPS
Hazardous Area
- CSA Class 1, Div. 2, Groups B, C, D, Temp Class T3 (5011 frame on VFD Temp Class T2D)
Protection
- Space Heater: 120/240 Volt
- Stator RTDs, 2/phase: 2-wire
- Bearing RTDs, 1/bearing: 2-wire
