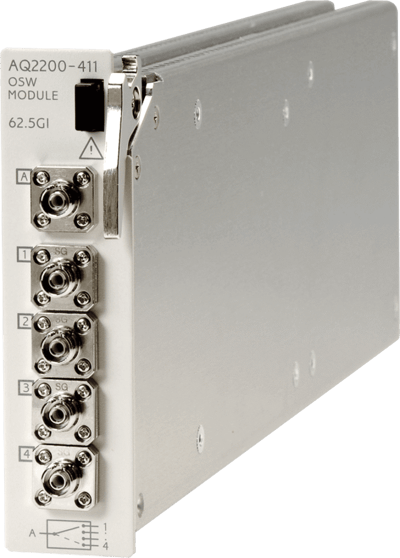

AQ2200-411 OSW Module
Brand: Yokogawa Electric CorporationThe AQ2200-411 OSW module is a space-saving optical switch featuring low insertion loss and superior switching reproducibility, and allows selection of 1 x 4 or 1 x 8 port configuration according to the application.
Features- Compact: optical switches of 1 x 4 or 1 x 8 port configuration in a one-slot size module
- Compatible with SMF (10/125 µm) or MMF (50/125 µm, 62.5/125 µm)
- Low insertion loss: 1.0 dB (typical)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
Port Configuration
Optical Fiber
Optical Connector
View Details
Part Number / SKU
735141-04-SA-FCC
$125.00
CAD
Specifications
Connectors
- Optical Connector: FC/PC or SC/PC
Polarization
- Polarization Dependence: 0.08 dB Peak-to-Peak or Less
Port
- Port Configuration: 1 x 4
- Port Configuration: 1 x 8
Repeatability
- ± 0.01 dB or Less
Wavelength
- 1,310 / 1,550 Nm
- 850 / 1,310 Nm
