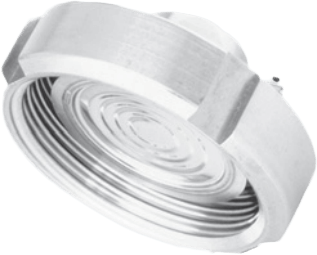

Quick-Release Diaphragm Seals
Brand: Siemens AGSpecifications
Brand
Standard to DIN 11851 with Nut
- DN 25/32/40
- DN 50/65/80
- PN 40
- PN 25
Standard to DIN 11851 with Thread
- DN 25/32/40
- DN 50/65/80
- PN 40
- PN 25
Standard Clamp ISO 2852
- DN 25/38/51
- DN 63.5/76.1
- PN 16
- PN 10
Standard Clamp DIN 32676, Row C Tri-Clamp
- 1 inch, 1-1/2 inch
- 2 inch, 2-1/2 inch
- 3 inch
- PN 25
- PN 16
- PN 10
Standard Clamp DIN 32676, Row A metric
- DN 25/32/40
- DN 50
- DN 65
- PN 25
- PN 16
- PN 10
Varivent
- DN 25/32/40/50
- PN 25
DRD-flange
- DN 50
- PN 40
Sealing Face
- To EN 1092-1, form B1 or ASME B 16.5RF 125 ... 250 AA
- To EN 1092-1, form B2 or ASME B16.5 RFSF
Main Body Materials
- 316L Stainless Steel
Wetted Parts Materials
- 316L Stainless Steel
Capillary Materials
- Stainless Steel, mat. no. 1.4571/316Ti
Sheath Materials
- Spiral protective tube made of stainless steel, mat. no. 1.4301/316
Tube Length
- Without tube
Capillary Length
- Maximum 10 m
- 32.8 ft
- Longer lengths on request
Capillary Internal Diameter
- 2 mm
- 0.079 inch
Capillary Minimum Bending Radius
- 150 mm
- 5.9 inch
Capillary Sheath
- Spiral protective tube made of stainless steel, mat. no. 1.4301/316
Filling Liquid
- Food Oil FDA Listed
Permissible Ambient Temperature
- Dependent on the pressure trans- mitter and the filling liquid of the remote seal
Weight
- Approx. 4 kg
- 8.82 lb
Certificates & Approvals
- Classification according to pressure equipment directive
- DGRL 2014/68/EU
- EHEDG
