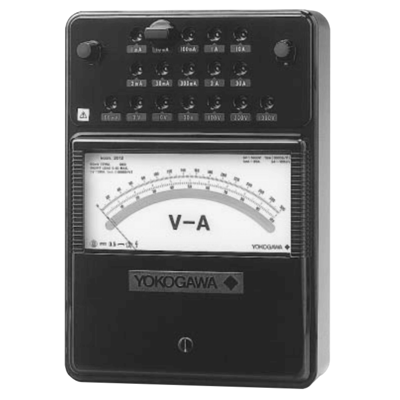

2012 Portable DC Ammeter & Voltmeter

Brand: Yokogawa Electric Corporation

Model 2012 is moving coil type instrument using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and strong resistance to shock impact.

These precision instruments combine a magnetic circuit (sandwich mechanism) that blocks the effects of external magnetic fields, and a superior temperature compensation circuit.
Features
  • Taut-band Suspension System Eliminates Friction and Provides Strong Resistance to Shock Impact
  • Stable Performance Ensures that Changes Over Time are Negligible
  • Quick Response and Easy-to-read Scale
  • Superior Temperature Compensation Circuit Reduces External Temperature Effects
  • Magnetic Circuit (Sandwich Mechanism) Reduces the Effects of External Magnetic Fields

Specifications

Humidity

  • 25 to 80 % Relative Humidity

Input

  • 1-30 A
  • 1-300 mA (1,000 ohms/V)

Insulation Resistance

  • 10 megaohms

Length

  • 135 mm

Mounting Position

  • Horizontal

Operating Temperature

  • 0° to 40° C (32° to 104° F)

Resistance

  • 59 ohms

Response Time

  • 5 seconds

Rotation

  • 85°

Storage Temperature

  • -10° to 50° C (14° to 122° F)

Supply Voltage

  • 3,000 Vac
  • 500 Vdc

Voltage Drop

  • 24-100 mV
