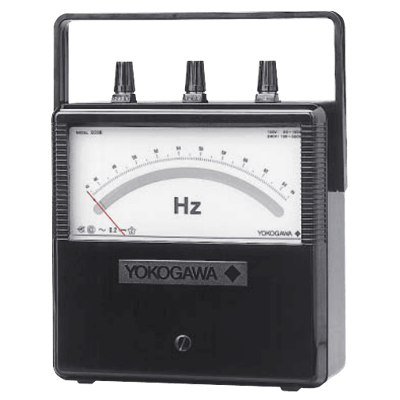

2038 Portable Needle-Indicator Frequency Meter
Brand: Yokogawa Electric CorporationModel 2038 uses a transducer to convert a measured frequency to a proportionate DC current, then shows the current as a DC current reading.
The transducer, combined with a high sensitivity moving coil type indicator based on YOKOGAWA's proprietary taut-band suspension system, provides a level of performance not possible with conventional frequency meters.
In addition to frequency measurements for research labs and schools, the 2038 can be used as a standard for measurement control labs and field tests.
Features- A wide Range of Frequencies (45 to 500 Hz) Can be Measured with the Broad Selection of Models
- True Equivalent Scale Enables Measurement of Continuous Frequency Changes
- A Wide Range of Voltages (50-300 V) Can be Used
- RMS Response (Differential System) Minimizes Waveform Effects
- Anti-shock Structure Provided by Taut-band Design
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 6
100+ In Stock
$530.00 CAD
Does not ship to OH, United States
100+ In Stock
$515.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,322.00 CAD
Does not ship to OH, United States
25+ In Stock
$462.00 CAD
Does not ship to OH, United States
25+ In Stock
$308.00 CAD
Does not ship to OH, United States
25+ In Stock
$1,482.00 CAD
Does not ship to OH, United States
Specifications
Ambient Temperature Range
- 0° to 40° C (32° to 104° F)
Class
- JIS C 1102 (Fiducial Value) Equivalent to Class 0.2, 0.5, 1.0
Consumption
- Approximately 1.3 VA for 120 V
- Approximately 2 VA for 240 V
Frequency
- 20 to 500 Hz
Humidity
- 25 to 80 % Relative Humidity
Insulation Resistance
- > 10 megaohms - between Electrical Circuit & the Case DC 500 V
Length
- 5.31” (135 mm) - Scale Length
Mounting Position
- Horizontal
Operating Temperature
- 0° to 40° C (32° to 104° F)
Principle of Operation
- Needle Indicator Frequency Meter (Differential System)
Rotation
- 85° - Deflection Angle
Storage Temperature
- -10° to 50° C (14° to 122° F)
Supply Voltage
- 120 V - used between 50-135 V
- 2,000 V - Voltage Test between Electrical Circuit & the Case DC for 5 seconds
- 240 V - used between 130-300 V
- 50-300 V
