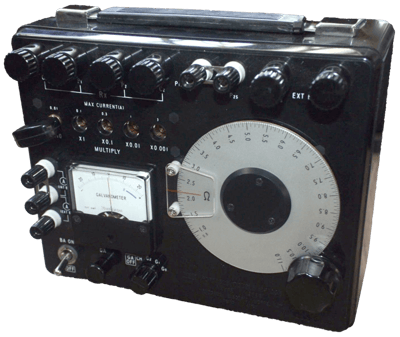

2769 Portable Double Bridge

Brand: Yokogawa Electric Corporation

Model 2769 is a compact, portable Kelvin double bridge designed for measuring low resistance from 0.1 MillOhm to 110 Ohms with four multiplication plugs and one measuring dial.

It has built-in standard resistors, bridge power source and high-sensitivity taut-band suspension system electronic DC galvanometer.

Models matching criteria: 2
  • Model - Portable Double Bridge Refurbished. Used & Tested. Includes Test Lead Set Only
25+ In Stock
$2,183.00 CAD
Does not ship to OH, United States
  • Model - Portable Double Bridge
3 In Stock
$2,200.00 CAD
Does not ship to OH, United States

Specifications

Accuracy

  • ± (0.05 ohms x Multiplier + 0.01 Milliohm)

Battery Life

  • Approximately 300 Hours - Galvanometer

Humidity

  • < 85 % Relative Humidity

Measuring Range

  • 0.1 Milliohm to 110 ohms

Operating Temperature

  • 5° to 35° C (41° to 95° F)

Power Requirement

  • 9 V Battery (JIS 6F22) - Galvanometer
  • Two 1.5 V Batteries (JIS R20P) - Bridge Power Source

Rating

  • 0.01 A at x 10 (1,000 ohms) - Current Rating
  • 0.1 A at x 1 (100 ohms) - Current Rating
  • 0.3 A at x 0.1 (10 ohms) - Current Rating
  • 1 A at x 0.01 (1 ohm) - Current Rating
  • 10 A at x 0.0001 (0.01 ohm) - Current Rating
  • 3 A at x 0.001 (0.1 ohm) - Current Rating

Resistance

  • Approximately 11 kiloohms - Input Resistance

Sensitivity

  • Approximately 20 µV/div - Galvanometer
