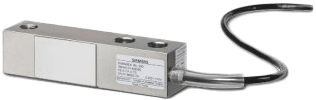

SIWAREX WL230 SB-S CA Shear Beam Load Cell

Brand: Siemens AG

The SIWAREX WL230 SB-S CA is a shear beam load cell made of nickel-plated steel. The 100 kg (220.46 lb) and 250 kg (551.16 lb) load classes are implemented as bending beam load cells.

This load cell type is suitable for platform and hopper scales. With an adjustable foot the force transfer can be easily realized.

This load cell type is suitable for rated loads from 100 kg up to 10t. It is available in C3, C4 and C5 accuracy classes.

Thanks to the galvanized nickel coating and IP67 protection rating, the SIWAREX WL230 SB-S CA can be used in harsh environments.
Features
  • Wide range of rated loads available
  • High degree of protection
  • High accuracy classes

Models matching criteria: 24
  • Rated Load - 10 t (9.84 tn. l.)
  • Accuracy Class - C4
100+ In Stock
$1,826.00 CAD
Does not ship to OH, United States
  • Rated Load - 10 t (9.84 tn. l.)
  • Accuracy Class - C3
100+ In Stock
$2,116.00 CAD
Does not ship to OH, United States
  • Rated Load - 5 t (4.92 tn. l.)
  • Accuracy Class - C4
100+ In Stock
$805.00 CAD
Does not ship to OH, United States
  • Rated Load - 500 kg (1 102.31 lb)
  • Accuracy Class - C3
100+ In Stock
$499.00 CAD
Does not ship to OH, United States
  • Rated Load - 1 t (0.98 tn. l.)
  • Accuracy Class - C3
50+ In Stock
$1,615.00 CAD
Does not ship to OH, United States
  • Rated Load - 5 t (4.92 tn. l.)
  • Accuracy Class - C5
50+ In Stock
$1,020.00 CAD
Does not ship to OH, United States
  • Rated Load - 1 t (0.98 tn. l.)
  • Accuracy Class - C5
50+ In Stock
$1,048.00 CAD
Does not ship to OH, United States
  • Rated Load - 100 kg (220.46 lbs)
  • Accuracy Class - C5
50+ In Stock
$712.00 CAD
Does not ship to OH, United States
  • Rated Load - 250 kg (551.16 lb)
  • Accuracy Class - C3
50+ In Stock
$2,065.00 CAD
Does not ship to OH, United States
  • Rated Load - 2 t (1.97 tn. l.)
  • Accuracy Class - C5
50+ In Stock
$902.00 CAD
Does not ship to OH, United States
  • Rated Load - 500 kg (1 102.31 lb)
  • Accuracy Class - C5
50+ In Stock
$1,116.00 CAD
Does not ship to OH, United States
  • Rated Load - 1 t (0.98 tn. l.)
  • Accuracy Class - C4
50+ In Stock
$2,246.00 CAD
Does not ship to OH, United States
  • Rated Load - 100 kg (220.46 lbs)
  • Accuracy Class - C4
50+ In Stock
$1,124.00 CAD
Does not ship to OH, United States
  • Rated Load - 2 t (1.97 tn. l.)
  • Accuracy Class - C3
50+ In Stock
$1,038.00 CAD
Does not ship to OH, United States
  • Rated Load - 3 t (2.95 tn. l.)
  • Accuracy Class - C5
25+ In Stock
$402.00 CAD
Does not ship to OH, United States
  • Rated Load - 3 t (2.95 tn. l.)
  • Accuracy Class - C3
25+ In Stock
$826.00 CAD
Does not ship to OH, United States
  • Rated Load - 5 t (4.92 tn. l.)
  • Accuracy Class - C3
25+ In Stock
$2,102.00 CAD
Does not ship to OH, United States
  • Rated Load - 10 t (9.84 tn. l.)
  • Accuracy Class - C5
25+ In Stock
$769.00 CAD
Does not ship to OH, United States
  • Rated Load - 250 kg (551.16 lb)
  • Accuracy Class - C5
25+ In Stock
$868.00 CAD
Does not ship to OH, United States
  • Rated Load - 100 kg (220.46 lbs)
  • Accuracy Class - C3
25+ In Stock
$704.00 CAD
Does not ship to OH, United States
  • Rated Load - 3 t (2.95 tn. l.)
  • Accuracy Class - C4
11 In Stock
$1,824.00 CAD
Does not ship to OH, United States
  • Rated Load - 250 kg (551.16 lb)
  • Accuracy Class - C4
7 In Stock
$1,356.00 CAD
Does not ship to OH, United States
  • Rated Load - 2 t (1.97 tn. l.)
  • Accuracy Class - C4
7 In Stock
$1,538.00 CAD
Does not ship to OH, United States
  • Rated Load - 500 kg (1 102.31 lb)
  • Accuracy Class - C4
3 In Stock
$1,040.00 CAD
Does not ship to OH, United States

Specifications

Rated Load

  • 100 kg, 250 kg, 500 kg, 1 t, 2 t, 3 t, 5 t, 10 t

Accuracy Class

  • C3, C4, C5

Environmental Protection

  • IP67

Sensor Material (DIN)

  • Nickel-Plated Steel

Supply Voltage

  • Recommended 5-12 Vdc
  • Maximum 18 Vdc

Raeted Temperature Range

  • -10° to +40° C

Operating Temperature

  • -35° to +65° C

Storage Temperature

  • -40° to +80° C

  • Platform Scales
  • Hopper Scales
